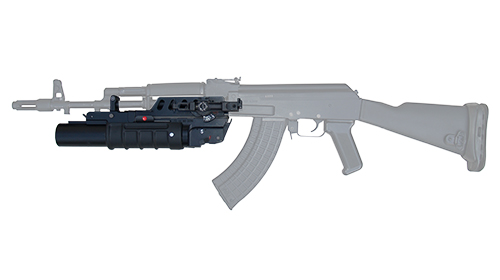

40x46 mm ARSENAL Underbarrel Grenade Launchers UBGL-M6

NSN: 1010-50-000-6777



The 40x46 mm ARSENAL Underbarrel Grenade Launcher UBGL-M6 is a single shot, breech loaded launcher, intended for use with the following assault rifles versions for increasing their firepower and greater convenience.

The UBGL-M6 add-on Grenade Launcher is intended for use with the following assault rifles (Weapon Interface

Main Features:
  • Add-on launcher;
  • Flat or curved trajectory fire;
  • Chamber loading;
  • Ammunition - low velocity grenades caliber 40x46 mm with length up to 170 mm;
Specifications
UBGL-M6
Suitable for attaching to

- 5.56x45 mm and 7.62x39 mm ARSENAL Assault Rifles AR-M1, AR-M1F, AR-M7F, AR-M75F, AR-M7T, AR-M9, AR-M9F, AR-M1F41, AR-M5, AR-M5F41, AR-M5T, etc.
For firing with Assault rifles, mentioned below, the UBGL-M6 have to be equipped with dimensionally suitable parts: Front Support and Rear Lug:
- 5.56x45 mm and 7.62x39 mm ARSENAL Assault Rifles AR-M2F, AR-M8F, AR-M12F; AR-M527F; etc.
- 5.45x39 mm ARSENAL Assault Rifles AR-M1, AR-M1F;
- 7.62x39 mm ARSENAL Assault Rifles AR, AR-F, AR-1, AR-1F;
- 5.45x39 mm AK-74 and AKS-74;
- 5.56x45 mm AK-101; 7.62x39 mm AK-47, AKS-47, AK-103, AKM, AKMS, etc.

Calibre, mm 40x46
Ammunition

Arsenal JSCo. production:
RLV-HEF, RLV-HEF-1, RLV-HEFJ, RLV-AD, RLV-TB, RLV-HEDP-1, RLV-P, RLV-TPM, RLV-SMK-O, RLV-SMK-W, RLV-SMK-2, RLV-S&F, RLV-ILL-YS, RLV-S, RLV-CS, etc.

Other manufacturers: M 406 type and all types 40x46 mm low velocity grenades with length up to 170 mm
Muzzle velocity, m/s 76±3
Rate of fire, rounds/min Not less than 5
Max firing range, m Up to 400
Effective range at area targets, m Up to 350
Effective range at point targets, m Up to 150
Overall length, mm 375
Barrel length, mm 250
Weight of Underbarrel Grenade Launcher, kg 1.6 max
System life, rounds 1000
Accuaracy
There should be a minimum of 3 hits out of 5 rounds serially fired by a shooter in which weapon is mechanically clamped to a static platform and in normal environmental conditions at an area target of 5 m radius placed at a distance of 100 meters
ACCESSORIES
Canvas  for grenade launcher, pcs. 1
Bag for 5 grenades, pcs. 2
Brush, pc. 1
Receiver cover latch unit, pc. 1
Drift, pc. 1
Packing
Content of the case:
- Grenade launchers in a wooden case, pcs. 18
- Set of group SPTA for 18 launchers, set 1
- Accessories, set 18
Case dimensions, mm 1270x572x387
Gross weight of wooden case, kg 82
Volume of the wooden case, m3 0.28
