HAND GRENADES

GHD-2

HAND GRENADES

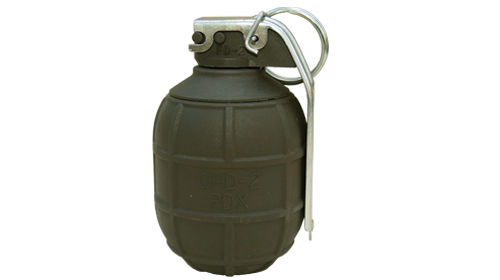

Hand Grenade Defensive GHD- 2

NSN: 1330-50-000-7198

The Grenades are used to produce casualties by high-velocity projection of fragments.

Performance:

-  Cylindrical preformed fragments inside

-  HE max blast and HE Fragmentation effect;

-  Time delay fuze.

TECHNICAL CHARACTERISTICS GHD-2
Grenade type Defensive
Action High explosive, Fragmentation
Fuze type Time delay, AF11
Delay time, s from 3.2 to 4.2/from 3.2 to 4.8
Total weight, kg 0.44
Overall dimension, mm:
- height

95

- diameter 58
Preformed fragments number, pcs. approx. 780
Weight of explosive charge, g 75
Type of explosive charge RDX
Lethal radius, m 15
Safety radius, m 47
Operation temperature range, °C from minus 43 to 52
CLASS OF EXPLOSION HAZARD: 1.1F, UN 0292
PACKING
Number of grenades in one wooden case 20
Wooden case dimensions, mm 490x303x168
Wooden case gross weight, kg 15
Wooden case volume, m3 0.025
