HAND GRENADES

GHO-2

HAND GRENADES

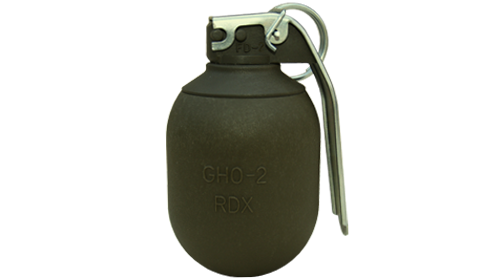

Hand Grenades Offensive GHO-2

NSN: 1330-50-001-1894

The Grenades are used to produce casualties by high-velocity projection of fragments.



Performance:

-  HE max blast and HE Fragmentation effect;

-  Time delay fuze.





TECHNICAL CHARACTERISTICS GHO-2
Grenade type Offensive
Action High explosive, Blast
Fuze type Time delay, AF11
Delay time, s from 3.2 to 4.2
Total weight, kg 0.24
Overall dimension, mm:
- height

95

- diameter 56
Weight of explosive charge, g 75
Type of explosive charge RDX
Lethal radius, m 2
Safety radius, m 15
Operation temperature range, °C from minus 43 to 52
CLASS OF EXPLOSION HAZARD: 1.1F, UN 0292
PACKING
Number of grenades in one wooden case 20
Wooden case dimensions, mm 490x303x168
Wooden case gross weight, kg 12
Wooden case volume, m3 0.025
