Rounds for Heavy Anti-tank Recoilless Systems

73 mm RHEAT-9MA2

Rounds for Heavy Anti-tank Recoilless Systems

Print

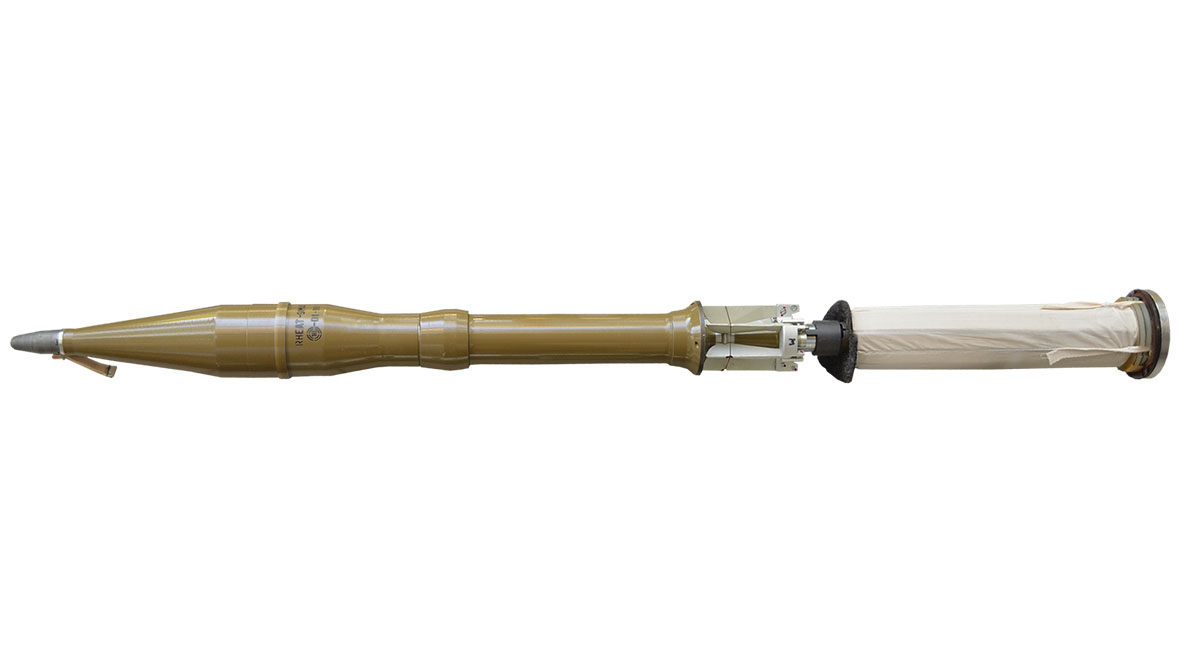

73 mm Round RHEAT-9MA2 with Anti-Tank Grenade GHEAT-9MA2

NSN:1310-50-001-1628

Improved, modernized version of Anti-Tank Rounds for SPG-9

Main Features:

The 73 mm Round RHEAT-9MA2 is designed for destroying tanks, self-propelled guns and other armoured vehicles. It can be used for destroying manpower of the enemy in hasty field, shelters and brick-wall fortifications.

TACTICAL-TECHNICAL CHARACTERISTICS
Caliber, mm 73
Armour penetration, mm 300
Max firing range, m 1 300
Direct firing range, m 800
Weight of the round, kg 4.385
Weight of the grenade, kg 2.615
Muzzle velocity, m/s 435
Operational temperature range, °C from minus 40 to 50
The Round consists:
Fuze Piezoelectri AF91 / AF74
High-Explosive Anti-Tank Grenade GHEAT-9MA2
Sustainer Motor SM-92
Propellant Charge CP-91
Weapon Systems:
All 73 mm ARSENAL ATGL-H and Russian SPG-9 Anti-Tank Grenade Launchers
PACKING:
  • 6 Rounds are packed in a wooden case as follows:
  • 6 Grenades GHEAT-9MA2 (each one in airtight plastic bag) and
  • 6 Propellant Charges (each one in a plastic containers).
Wooden case:
Dimensions, mm 1 065x525x305
Weight, kg 60
Volume, m3 0.17
CLASS OF EXPLOSION HAZARD: 1.1E, UN 0181
