40-round MAGAZINE for 7.62x39 mm Cartridges
Uncategorised

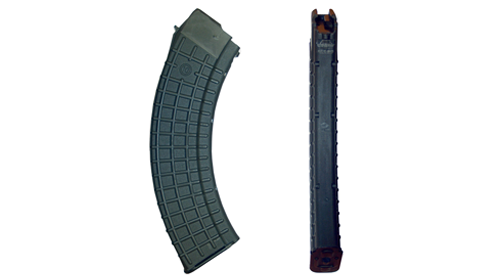

40-round MAGAZINE for 7.62x39 mm Cartridges
The magazine is intended to be fitted to Arsenal and Kalashnikov type Light Machine Guns, calibre 7.62x39 mm. Produced from high quality and resistant polymer (fiber glass reinforced polycaproamide) - corrosion-resistance.| Technical Data | |
| Material of the magazine | Polycaproamide |
| Magazine capacity, rounds | 40 |
| Weight of empty magazine, kg | 0.240 |
|
Max. force of pressing the magazine walls (at the magazine middle area) at which afterflow is not observed and the magazine has normal functioning. Pressing with 1500 kg force â after 15-20 min magazine will restore its normal functioning. |
1450 kg |
| Drop (3 times) of the loaded magazine from 1 m height on concrete plate | no deformation |
| Drop (12 times) of the Light Machine Gun with attached loaded magazine on its butt from 1,5 m height on concrete plate | no deformation that effects the rifle functioning |
| Drop (5 times) of the Assault Rifle with attached loaded magazine on its muzzle from 1.5 m height on concrete plate | no deformation that effects the rifle functioning |
| Drop (3 times) of the Light Machine Gun with attached loaded magazine on the magazine from 1 m height on concrete plate | minimum deformation on the magazine body |
| Passing of car through the magazine (empty and loaded) | no deformation |
