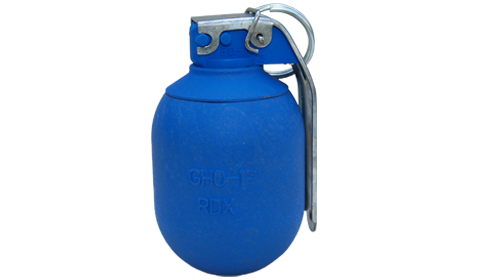

Practice Offensive Hand Grenade GHO-1P
NSN:1330-50-001-0620
GHO-1P is a Practice Offensive Hand Grenade, intended to train
soldiers how to operate with grenades.
The grenades perform sound, flash and smoke effects analogical to the combat grenade,
but without lethal fragments.
 TECHNICAL CHARACTERISTICS |
GHO-1P |
| Grenade type | Practice |
| Action | Smoke, Sound, Flash |
| Fuze type | AF12 |
| Delay time, s | from 3.0 to 5.0 |
| Total weight, kg | not more than 0.3 |
|
Overall dimension, mm: - height - diameter |
95 56 |
| Intensity of the sound at the distance of 0.3 m, dB | from 130 to 170 |
| Safety radius, m | not more than 5 |
| Operation temperature range, °C | from minus 43 to 52 |
| CLASS OF EXPLOSION HAZARD: | 1.2G, UN 0372 |
| PACKING | |
| 23 grenades in plastic containers, are packed in a wooden case. | |
| Wooden case dimensions, mm | 488x353x151 |
| Wooden case gross weight, kg | 14 |
| Wooden case volume, m3 | 0.026 |
