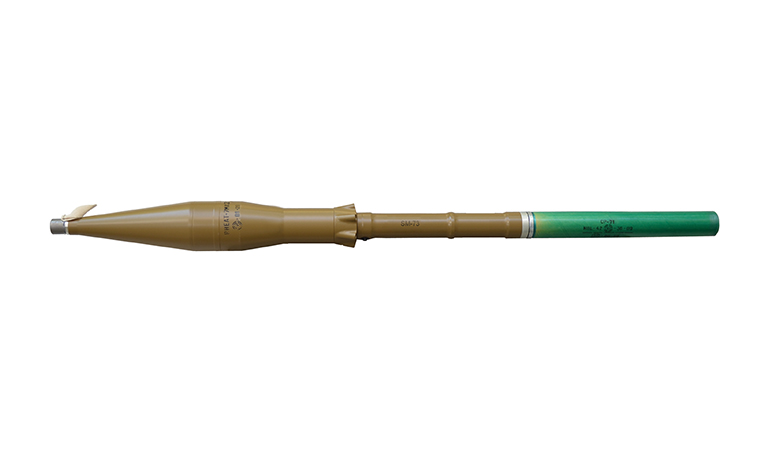

40/73 mm Round RHEAT-7MA2 with Anti-Tank Grenade GHEAT-7MA2

NSN:1310-50-001-3757

Improved, modernized version of Anti-Tank Rounds for RPG-7V

The   40/73 mm RHEAT-7MA2   is  designed for destroying tanks, self- propelled guns, and other armoured vehicles. It can also be used against enemy troops and weapon emplacements in trenches, field shelters or in brick-wall fortifications.

Performance :

  • Higher accuracy and low dispersion;
  • Max sighting range - 500 m.
TACTICAL-TECHNICAL CHARACTERISTICS RHEAT-7MA2
Caliber, mm 40
Warhead calibre, mm 73
Armour penetration, mm 300
Max sighting range, m 500

Range of direct firing
against a target with 2 m height, m

 300
Weight of the round, kg 2.0 max
Weight of the grenade, kg 1.6
Average Muzzle velocity, m/s 140
Fire rate, shots/min 4-6
Operational temperature range, oC from minus 40 to 50
The Round consists:
Fuze Piezoelectric AF78
Anti-tank Grenade GHEAT-7MA2
Sustainer Motor SM-73
Propellant Charge CP-71
Weapon Systems

All 40 mm ARSENAL ATGL-L Family and Russian RPG-7V Light Anti-Tank Grenade Launchers.
PACKING:

- 6 Rounds are packed in a wooden case as follows:

- 6 Grenades (each one in airtight plastic bag)
and 6 Propellant Charges (each one in a plastic container; each 3 pcs. plastic containers in an airtight plastic bag).
Wooden case:
Dimensions, mm 844x429x251
Weight, kg 30
Volume, m3 0.091
CLASS OF EXPLOSION HAZARD:  1.1E, UN 0181
