Machine Guns

7.62x54 mm MG-1М

Machine Guns

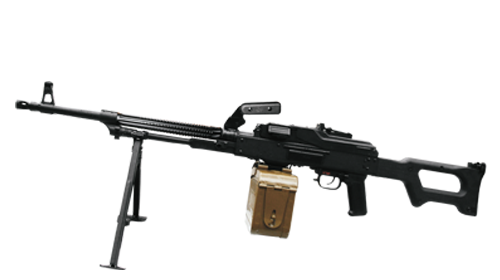

7.62x54 mm ARSENAL Machine Guns MG-1M

NSN: 1005-50-001-0625

 7.62x54 mm ARSENAL Machine Guns MG-1M are powerful automatic weapons, used as armament against enemy troops and firing points.

The MG-1M design is specially intended and allows operation of the weapon in heavy climatic conditions, which are typical for the regions of Middle East, south-east Asia and Africa.

Main Features:
  • Chromium plated Barrel, manufactured by the method of cold radial forging, has increased cooling surface.
  • Modern design of the Flash Suppressor-Compensator.
  • Butt and Hand grip, made of high quality and resistant glass fiber reinforced polycaproamide, not effected after heating by direct sun lights, corrosion and humidity resistance, light and firm.
  • Feeding by 100- or 200-round metal belt, put in a box.
  • The MG-1M can be easily mounted on Arsenal Tripod TAR-MG, that provides precision and efficient fire at air and ground targets.
Optional Extras (Paid Separately):
  • Blank firing attachment - set (bushing & frame);
  • Rail for sighting devices.
Specifications
MG-1M   cal. 7.62x54
Calibre, mm 7.62 Barrel length, mm 605
Cartridge, mm 7.62x54 Sight radius, mm 663
Fire mode Automatic Overall length, mm 1160
Rate of fire, rounds/min 650 Weight without ammunition box, kg 9.0
Practical rate, rounds/min 250 Weight of loaded ammunition box
Muzzle velocity, m/s 825 - with loaded 100 round metal belt, kg 3.9
Maximum firing range, m 3800 - with loaded 200 round metal belt, kg 6.5
Maximum effective firing range, m 1000 System life, rounds 28 000
Sighting range, m 1500 Principle of function Gas operated
Ammunition box capacity, rounds 100/200
ACCESSORIES

Second barrel Cleaning rod
Bag with spare parts consisting of: Sling
- Firing pin; 2 pcs. metal belt for 100 cartridges
- Extractor; 2 pcs. ammunition box for metal belt for 100 cartridges
- Extractor spring; Canvas for second barrel
- Extractor pin; Canvas for machine gun
- Locking pin of extractor pin. 2 pcs. metal belt for 200 cartridges
Box with accessories (brush, drift, scourer, screwdriver) 2 pcs. ammunition box for metal belt for 200 cartridges
Extracting device for split cartridge cases
Packing
cal. 7.62x54
Number of machine guns in one wooden case 2
Case dimensions, mm 1330x525x350
Gross weight of the wooden case, kg 72
Volume of the wooden case, m3 0.25
