73 mm ARSENAL Heavy Anti-Tank Grenade Launchers ATGL-H Family
ATGL-H - NSN: 1010-50-001-1181
ATGL-H1 - NSN: 1010-50-001-1180
ATGL-H2 - NSN: 1010-50-000-0294
ATGL-H3 - NSN: 1010-50-001-1759
ATGL-H, ATGL-H1, ATGL-H2 and ATGL-H3 are mighty reliable recoilless fire weapons for destroying tanks, self-propelled artillery mounts and other armoured vehicles, as well as for destroying the enemy `s manpower.
 Specifications |
ATGL-H | ATGL-H1 | ATGL-H2 | ATGL-H3 |
| Calibre, mm | 73 | 73 | 73 | 73 |

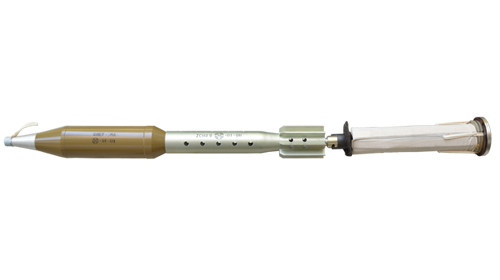

| Ammunition | RHEAT-9MA, RHEAT-9MA2, PG-9V, PG-9VN, RHEF-9MA, RHEF-9MA1, OG-9V, OG-9VM, RTB-9MA, etc. | |||
| Equipment | body with telescopic tripod |
body with telescopic tripod and wheelset |
body with telescopic tripod |
body with telescopic tripod and wheelset |
| Sighting Devices | Optical Sight PGOK-9 or SGL-9MA | Optical Sight PGOK-9 or SGL-9MA | Optical Sight PGOK-9 or SGL-9MA and Night Sight NOS-4B or PGN-9 |
Optical Sight PGOK-9 or SGL-9MA and Night Sight NOS-4B or PGN-9 |
| Weight, kg | 50.5 | 66.5 | 59 | 75 |
| Length of launcher, mm | 2110 | 2110 | 2110 | 2110 |
| Height of launcher, mm
- with optical sight - with wheelset in traveling position |
|
740 |
|
920 740 |
| Max width on tripod, mm | 1050 | 1050 | 1050 | 1050 |
| Max width on wheelset in traveling position, mm |
- | 665 | - | 665 |
| Muzzle velocity, m/s
- RHEAT-9MA, PG-9V and PG-9VN - RHEF-9MA, RHEF-9MA1, OG-9V, |
435 316 |
435 316 |
435 316 |
435 316 |
| Rate of fire, rounds/min | 6 | 6 | 6 | 6 |
| Direct fire range, m
- RHEAT-9MA, PG-9V and PG-9VN - RHEF-9MA, RHEF-9MA1, OG-9V, |
800 345 |
800 345 |
800 345 |
800 345 |
| Max range of fire, m
- RHEAT-9MA, PG-9V and PG-9VN - RHEF-9MA, RHEF-9MA1, OG-9V, |
1300 4500 |
1300 4500 |
1300 4500 |
1300 4500 |
| Max angle of elevation, degrees | 25 | 25 | 25 | 25 |
| System life, rounds | 500 | 500 | 500 | 500 |
 ACCESSORIES |
ATGL-H | ATGL-H1 | ATGL-H2 | ATGL-H3 |
| Optical sight PGOK-9 or SGL-9MA, pc. | 1 | 1 | 1 | 1 |
| Night sight NOS-4B or PGN-9, pc. | - | - | 1 | 1 |
| Wheelset, pc. | - | 1 | - | 1 |
| Bag for rounds, pc. | 2 | 2 | 2 | |
| Set of front and rear canvas covers, pc. | 1 | 1 | 1 | 1 |
| Canvas gloves, pair | 1 | 1 | 1 | 1 |
| Bag with set of spare parts and accessories, pc. | 1 | 1 | 1 | 1 |
| Brush, pc. | 1 | 1 | 1 | 1 |
| Cleaning rod, pc | 1 | 1 | 1 | 1 |
 Packing |
ATGL-H | ATGL-H1 | ATGL-H2 | ATGL-H3 |
| Wooden case with 1 weapon and accessories | ||||
| Case dimensions, mm | 2167x486x671 | 2167x486x671 | 2167x486x671 | 2167x486x671 |
| Gross weight of case, kg | 130 | 145 | 140 | 155 |
| Volume of case, m3 | 0.7 | 0.7 | 0.7 | 0.7 |
