Rounds for Grenade Launchers
40x46 mm RLV-HEDP-1 and RLV-HEDP-2

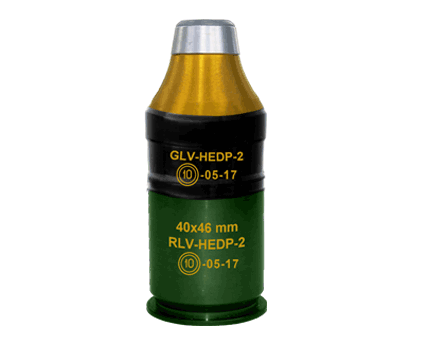

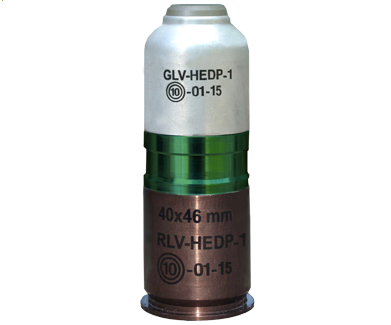

40x46 mm Round RLV-HEDP-1 and RLV-HEDP-2 with High Explosive Dual Purpose Grenade
RLV-HEDP-1
NSN:1310-50-001-4135
RLV-HEDP-2
NSN:1310-50-001-5104
The 40x46 mm RLV-HEDP-1 and RLV-HEDP-2 are used for hit of transport targets and light-armoured objects, capable for destroying of enemy personnel, located in long-term emplacements, long-term camouflaged emplacements, bunkers, dugouts and buildings.
The Rounds RLV-HEDP -1 are compatible with:
- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203;FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);
- Stand-alone Grenade Launchers: ARSENAL UGGL-M1, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);
- Multi-shot Grenade Launchers: Milkor Mark 1L; Rippel XRGL; ARSENAL MSGL-L, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).
The Rounds RLV-HEDP-2 are compatible with:
- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203; FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);
- Stand-alone Grenade Launchers: ARSENAL SAGL, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);
- Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; ARSENAL MSGL; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).
 TECHNICAL CHARACTERISTICS |
RLV-HEDP-1 | RLV-HEDP-2 |
| Type | Low Velocity, High Explosive Dual Purpose | Low Velocity, High Explosive Dual Purpose |
| Caliber, mm | 40x46 | 40x46 |
| Overall length, mm | 117 max | 105 max |
| Weight of Round, kg | 0.285 max | 0.295 max |
| Explosive filling | A-IX-1 (RDX) | A-IX-1 (RDX) |
| Cartridge case material | Aluminum alloy | Aluminum alloy |
| Primer type | Percussion, Boxer
type |
Percussion, Boxer type |
| Propellant charge type | Double base powder | Double base powder |
| Fuze type | AF413 – Point Detonating with Distance Arming and Self-Destruction | AF417 - Point Detonating with Distance Arming and Self-Destruction |
| Arming distance, m | from 10 to 40 | from 8 to 28 |
| Self-destruction time, s | from 14 to 19 | from 14 to 19 |
| Muzzle Velocity, m/s | 76 | 76 |
| Max firing range, m | 400 | 400 |
| Radius of defeat, m | 5 | 5 |
| Armour penetration | 50 mm armour plate | 50 mm armour plate |
| Operation temperature range, 0C | from minus 43 to 52 | from minus 43 to 52 |
| CLASS OF EXPLOSION HAZARD | 1.1E, UN 0006 | 1.1E, UN 0006 |
|
Shelf life 10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer. |
 Packing |
RLV-HEDP-1 | RLV-HEDP-2 |
| 3 metal airtight boxes (28 pcs. in each box), placed in a wooden case (84 pcs. totally) | 3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally) | |
| Case dimensions, mm | 875x398x206 | 875x398x206 |
| Case weight, kg | 40 | 52 |
| Case volume, m3 | 0.072 | 0.072 |
