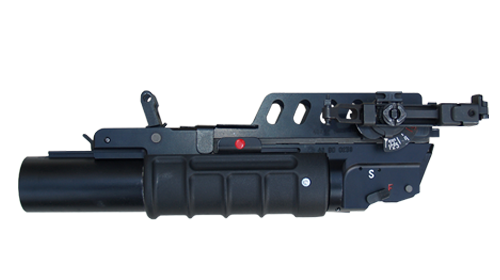

40x46 mm ARSENAL Underbarrel Grenade Launcher UBGL-M8

NSN: 1010-50-001-1863

The 40x46 mm ARSENAL Underbarrel Grenade Launchers UBGL-M8 are single shot launchers, intended for use with assault rifles, for destruction of single or group targets of enemy's manpower in an open area, in trenches and light shelters of field type, as well as reverse slopes.

Main Features:
  • Add-on launcher;
  • Flat or curved trajectory fire;
  • Chamber loading;
  • Ammunition - low velocity grenades caliber 40x46 mm with length up to 140 mm;
  • Picatinny rail (MIL-STD-1913) availability, that provides attachment of mechanical or collimator sight.
Specifications
UBGL-M8

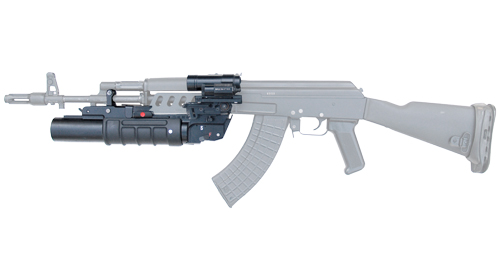

Suitable for attaching to
  • 5.45 mm, 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M1, AR-M1F;
  • 7.62 mm ARSENAL Assault Rifles AR, AR-F, AR-1, AR-1F;
  • 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M7F, AR-M9, AR-M9F,AR-M5,AR-M5F,AR-M52F, AR-M2F, AR-M8F, AR-M12F; AR-M527F etc.
  • 5.45 mm AK-74 and AKS-74;
  • 5.56 mm AK-101; 7.62 mm AK-47, AKS-47, AK-103, AKM, AKMS.
Calibre, mm 40x46
Ammunition Arsenal JSCo production:
RLV-HEF, RLV-HEFJ, RLV-AD, RLV-HEDP, RLV-P, RLV-TPM, RLV-SMK-O, RLV-SMK-W,
RLV-S&F, RLV-TB, RLV-ILL-YS, RLV-S, etc. Other manufacturers: M 406 type and
all types 40x46 mm low velocity grenades with length up to 140 mm
Muzzle velocity, m/s 76
Rate of fire, rounds/min Not less than 5
Max firing range, m Up to 400
Effective range at area targets, m Up to 350
Effective range at point targets, m Up to 150
Overall length, mm 376
Barrel length, mm 250
Weight (without mechanical sight), kg 1.463
Weight (with mechanical sight), kg 1.870
Barrel life, rounds 1000
ACCESSORIES

Bag for grenade launcher, pcs. 1
Bag for 5 grenades, pcs. 2
Brush for cleaning and lubrication of launcher barrel bore, pc. 1
Receiver cover latch unit, pc. 1
Drift, pc. 1
Packing

Content of the case:
- Grenade launchers in a wooden case, pcs. 18
- Set of group SPTA for 18 launchers, set 1
- Accessories, set 18
Case dimensions, mm 1270x572x387
Gross weight of wooden case, kg 83
Volume of the wooden case, m3 0.28
