23x152 mm ADS-N

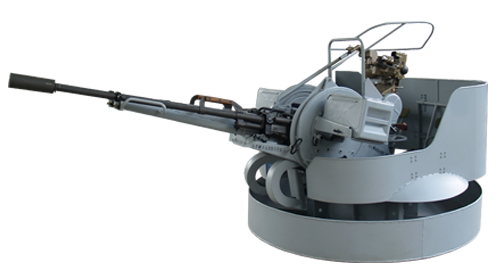

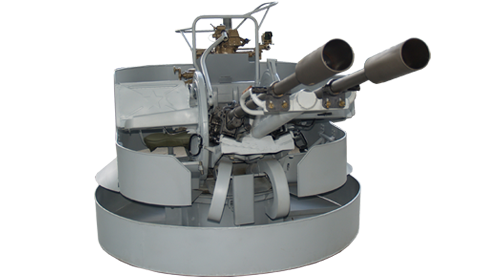

23x152 mm Air Defence System ADS-N (for Navy)
NSN : 1005-50-000-7416
ADS-N is a powerful weapons, intended for destruction of air targets within the range of 2500 m at height 1500 m, light armored sea targets and shore firing points within the range of 2000 m, as well as for destruction of enemy manpower at open or behind the light shelters.
Main Features:
-
The 23 mm Air-Defence System possess high tactical characteristics necessary for fighting against targets of opportunity and highspeed targets.
-
ADS-N is equipped with Anti-Aircraft Automatic Sight ZAP-23 and Optical Ground Sight T-3.
-
The System uses 23x152 mm HEI-T, HEI, API-T and FAPDS-T rounds.
-
Weapon feeding is performed by 50 round metal linked belt placed in a metal ammunition box.
-
Attachment of ADS-N to the deck is performed by 16 sets of bolts, nuts, thickening washers and spring washers, as the length of the bolts is according to the thickness of the deck.
-
Near the System, at place suitable for gunner operation and not disturbing the System functioning, 2 pcs of cabinets for keeping the ammunition boxes (for left and right hand feeding) and bath for Barrel cooling are mounted.
-
For the proper operation of the System a crew of 5 persons is needed.
 Specifications |
ADS-N |
| Number x calibre of automatic guns, mm | 2 x 23 |
| Ammunition, mm | 23 x 152 |
| Rate of fire, rounds/min | from 1600 to 2000 |
| Muzzle velocity of projectile, m/s | 970 |
| Effective range, m | |
| - traverse | 2000 |
| - elevation | 1500 |
| - slant | 2500 |
| Combat ammunition load, pcs | 100 |
| Aiming speed, deg/s | |
| - traverse | 30/60 |
| - elevation | 40 |
| Engagement section, degrees | |
| - horizontal | 360 |
| - vertical | from -10 to +90 |
| Overall dimensions in combat position, mm | |
| - length | 3700 |
| - height | 1650 |
| - width | 1900 |
| Weight of the system with covers, loaded ammunition boxes and SPTA set, kg |
880 |
| COMPLETE SET (ACCESSORIES) |
| ADS-N |
| 2 pcs spare barrels |
| Sights: ZAP-23 , T-3 and KV-L collimator |
| 14 pcs ammunition boxes |
| Barrel cooling basin |
| SPTA set |
| Overall protection cover |
| 2 pcs covers for the flush hiders |
| Cover for the sight |
|
2 pcs ammunition preservation cases with 6 pcs. boxes each. |
 Packing |
|
| 1. Case for two barrels and one gun, pcs | 2 |
| - Case dimensions, mm | 213 5x 385 x 336 |
| - Case gross weight, kg | 150 |
| 2. Ammunition preservation case with 6 pcs. boxes each | 2 |
| - Case dimensions, mm | 1000 x 620 x 620 |
| - Case gross weight, kg | 150 |
| 3. Case for barrel cooling basin, pc | 1 |
| - Case dimensions, mm | 2360 x 510 x 255 |
| - Case gross weight, kg | 50 |
| 4. Case with 630 belt links, pc | 1 |
| - Case dimensions, mm | 1126 x 310 x 342 |
| - Case gross weight, kg | 55 |
| 5.Case for SPTA set, pc | 1 |
| - Case dimensions, mm | 802 x 490 x 275 |
| - Case gross weight, kg | 50 |
| 6.Weight of the mount with cover on the palette, kg | 730 |
| - Palette dimensions, mm | 3100 x 2000 x 1800 |
